After LM: NASA Lunar Lander Concepts Beyond Apollo

As this document is being compiled in 2019, NASA is once again planning a return to the Moon, and new lunar lander designs are being generated. Compared to Apollo, crews are projected to be larger (at least four per mission) and stay times longer (beginning at 6.5 days). However, it is expected that the landers will look much like the designs in this document because, as stated in the introduction, lunar lander design is a response to the simple physics that governs the tasks they are asked to perform. Design is also a living thing. New crewed lander designs will continue to emerge up until the point that humans return to the Moon, and even beyond. New players from different countries and commercial providers will create new designs based on new technologies and new requirements. Until some breakthrough technology or new physics principle is created, each lander will respond to the current physics of lunar landing. There may come a time, generations from now, when future engineers are paging through a digital copy of this catalog and reflecting on the early work of lunar lander designers. “Those Apollo guys were really smart, given that they started with nothing as a reference. The Lunar Module – now THAT was a great lunar lander design.”

It’s an interesting, illustrated catalog of many lunar lander concepts, but it’s hardly comprehensive; it largely starts with the Space Exploration Initiative, largely ignoring concepts from the 70’s and 80’s, and of course focusing almost entirely on NASA_designed concepts rather than Lockheed, Boeing, Rockwell, etc.

 Posted by at 9:54 am
Nov 272021


If you look back to NASA in the mid-1960’s, it certainly seems like it was an organization filled with people who thought that the future was wide open. Apollo was merely going to be the first step; after some landings would come longer-term “camps” on the moon, with stays of a few weeks in temporary habitats; then would come bases that could be visited by multiple crews. Nuclear powered space stations with artificial gravity. There would be manned flyby missions to Venus and eventually manned landings on Mars; as propulsion systems inevitably grew vastly more capable, manned missions to the moons of Jupiter and Saturn would follow in due course.

By the time Apollo 11 actually landed on the moon, though, it was becoming clear that the future was not going to be what it should have been. As noted previously, the production line of the Saturn V was shut down a year before Apollo 11, not only limiting the possible missions of the Apollo program but ending hope for missions that would expand upon Apollo. Shortly after Apollo 11, it seems that morale at NASA was already in decline as the engineers, scientists, technicians and so on could see the writing on the wall. Not only was Saturn dead, but funding was in decline and it was becoming clear that there was minimal political interest in carrying Apollo forward… the job of beating the Soviets to the Moon was done, and the important scientific work, not to mention the prospect of carrying western civilization to the stars, was not that important to the political class who were far more interested in the “Great Society” spending programs. So in September of 1969 a “Seminar on Manned Flight Awareness” was held at the Manned Spacecraft Center, Houston, to deal with the issue:

The successful lunar landing and completion of the flight of Apollo 11 achieved a national objective in this decade and is a significant milestone in man’s continuing progress in space exploration. Historically, achievements of such magnitude, requiring concentrated efforts over an appreciable time period, are followed by a letdown and general relaxation of the personnel involved. In addition, this letdown may be amplified by a serious morale problem when funding cutbacks are experienced. The result is n decline in the required attention to detailed workmanship which can cause a rise in accident rates and potential loss of life.

To counter these potential morale and complacency problems in the spaceflight program, this Government/Industry Manned Flight Awareness Seminar is being conducted. The objective of this seminar is the maintenance of high quality workmanship through effective awareness and motivational programs. We intend to do this by outlining NASA’s plans for future programs and the resources being made available to successfully conclude these programs. In addition, executives of various industrial firms deeply involved in space work will present their views of the future. In this way we can get the message from NASA Management to the individuals responsible for doing the work that is vital to assuring a high quality of workmanship in the aerospace force.

Not having been born yet, I don’t have any firsthand information on just what was going on at the time in NASA. However, one thing I *do* have firsthand information on was the end of the United Technologies Center/Chemical System Division facility south of San Jose, California, circa 2003-2004. That company was a manufacturer of solid rockets such as the booster separation motors for the Space Shuttle, booster rockets for the Tomahawk cruise missile, Minuteman ICBM stages and so on. It was a vital part of the rocket industry of the United States. And in 2003-2004, it was *obvious* to everyone there that the company was doomed. Things were going wrong left and right to the point that a lot of us were wondering if it was active sabotage; in reality it was merely management and unions working together to make things as ridiculous as possible. Coupled with the fact that the company could, at best, turn in a profit measured at a handful of millions of dollars a year while sitting on *billions* of dollars of prime Silicon Valley real estate, everyone there knew that the companies time was strictly limited. So, what did the USAF and NASA do about it?

The USAF/NASA told the rest of the United States aerospace industry to *not* hire any of us. We were embargoed from seeking employment elsewhere, at least at companies that received federal contracts. So we stayed on the job. Until, of course, the embargoes were lifted, then we fled like rats fleeing a sinking ship.

It seems that NASA in September 1969 was facing a similar predicament. Everyone there – scientists, engineers, technicians and subcontractors of all kinds – could see the writing on the wall. And when you know that the project you’re working on has a near-term end date, you look for somewhere else to be, preferably before all your co-workers get the same idea. This is sensible, but it’s also a problem. Yes, Apollo/Saturn had a distinctly limited lifespan. But the program still had a number of years left, and it would need the bulk of the staff to stay on the job to make sure that the spacecraft and launch vehicles were finished, maintained and prepared for their missions. If everyone at NASA fled for brighter opportunities elsewhere, the missions still funded would be unable to be completed. So NASA held a seminar that seemed to have the singular goal of convincing people just how bright NASA’s future really was. A space shuttle would be available by 1976 and a space station by 1979… as well as a polar orbit station and one in geosynchronous. A lunar orbiting station around 1976. Nuclear powered inter-orbital shuttles. Manned missions back to the Moon and on to Mars.

It was all wrong. Yes, the Shuttle finally arrived in the early 1980’s, greatly delayed and vastly and permanently over budget, each flight costing one to two orders of magnitude more than originally projected. yes, a space station did eventually arrive… in the 1990’s, handicapped by international politics, small, undermanned, under-capable. None of the rest of it even *tried* to happen. The seminar reads like desperation, or a rah-rah session at some multi-level marketing scheme; I had flashes to scenes in the recent Hulu series “Dopesick” where Oxycontin sales reps are getting the latest BS about how great the next dosage of the pill will be, so go out there and sell more.

*A* future does not mean *A* *GOOD* *FUTURE.*

No. It was the end, and apparently everyone involved could see it.

You can download a PDF of the 80-page seminar publication HERE.

 Posted by at 5:26 pm
Oct 192021


I recently came across something on ebay that looked interesting; the buy-it-now price is a bit steep, so I googled it. Huzzah! It’s available online as a PDF. D’oh: my antivirus program freaked out that the connection to the university website is insecure. Huzzah! It has been archived on the Wayback machine.

https://web.archive.org/web/20210627145321/http://users.umiacs.umd.edu/~oard/apollo/LOR_News_Conference.pdf

This is a writeup, with photos and diagrams, of the July 11, 1962 news conference at NASA headquarters where the Lunar Orbit Rendezvous technique was described. prior to the the understanding was that the Apollo Command and Service Modules would land directly on the lunar surface; this sounds easy, but required a bigger booster than the Saturn V and would have put the astronauts far above the lunar surface (so far as I know, no determination of how exactly the astronauts were going to get some fifty or more feet down, and then fifty or more feet back up). LOR entailed the use of the Lunar Excursion Module,a  small, lightweight spacecraft that could zip on down the the surface from lunar orbit and then hop on back up. Far less mass needed to go to the lunar surface, meaning the planned Saturn C-5 (later Saturn V) could take care of the whole mission in one shot. No need to assemble spacecraft in Earth orbit using multiple launches of hardware and propellant tankers.

Support the APR Patreon to help bring more of this sort of thing to light! Alternatively, you can support through the APR Monthly Historical Documents Program.

 Posted by at 2:36 pm
Aug 082021

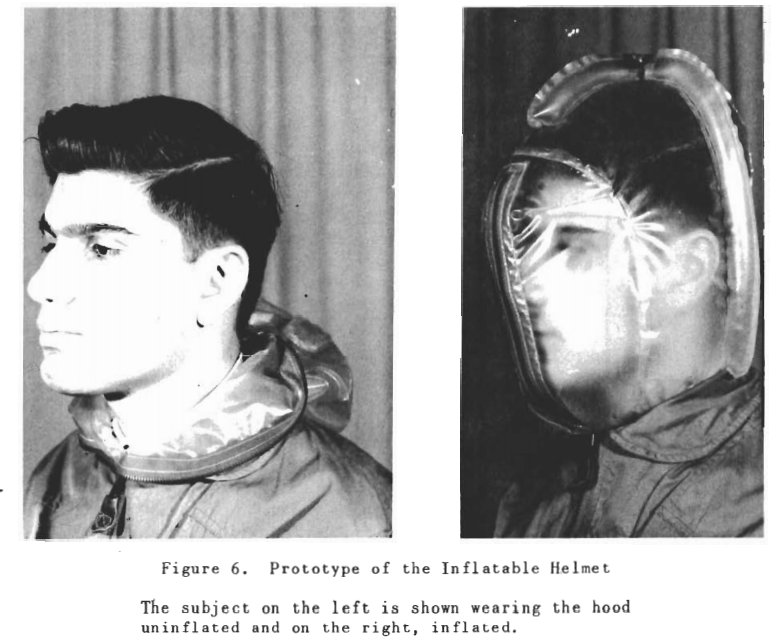

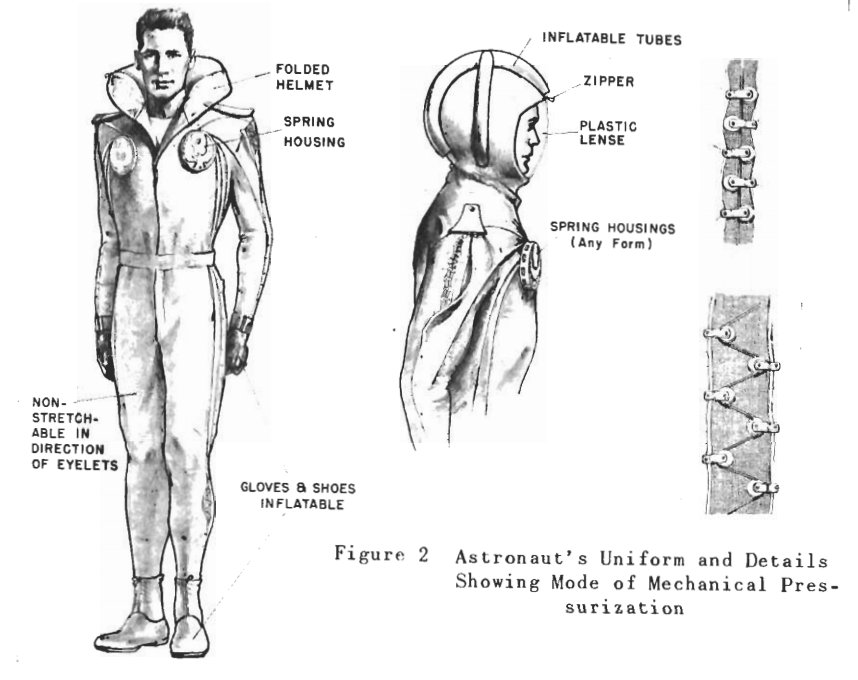

A 1963 USAF report describes work on an emergency “space suit.” It’s meant to be something that can be worn as a normal outfit and then zipped up at a moments notice in the event of a pressure drop. This includes a flexible helmet with a flexible “faceplate.” the end result looks like something out of a bad 1970’s pre-Star Wars disco-era sci-fi flick. Note, though that the actual test item is substantially less Giant Polyester Leisure Suit Lapels and more Cheap Plastic Poncho.

Report Number: AMRL TDR 63-82
Author: Seeler, Henry W.
Corporate Author: Aerospace Medical Research Labs Wright-Patterson AFB Ohio
Laboratory: Biomedical Laboratory
Date of Publication: 1963-09
Pages: 13
 Posted by at 11:33 am
Apr 132021


An interesting presentation on the “Ring Airfoil Grenade” concept from some decades ago. This was a “fat” ring-wing that would spin in flight; the result was a flatter trajectory than you’d get with a traditional bullet-shaped grenade. The presentation includes a large number of diagrams and photos of various types of grenades and launchers. Some were made from steel, pre-scored and filled with high explosives; others were made of softer materials and filled with CS capsules. Upon impact, the high spin rate would cause the projectile to split open and spew out the tear gas; and all that would be left is a rubber ring of no particular tactical value to the rioters.  The M234 RAG launcher was actually used in the late 70’s into the 80’s, though it seems pretty much forgotten now.

The aerodynamics of the RAG seem interesting. Difficult to envision what the technology could be used for apart from various types of grenades, though. The “cookie cutter” armor piercing system certainly seems interesting.

https://www.researchgate.net/publication/275521155_IFO’s_Identified_Flying_Objects_-_Ring_Airfoil_Grenade_RAG

 Posted by at 11:56 pm
Nov 242020


Hey! Anybody hereabouts interested in unbuilt variants of the North American B-70 bomber? I know a guy who can hook you up:

https://media.defense.gov/2020/Nov/23/2002540204/-1/-1/1/B-70%20VARIANTS.PDF

An official publication from the AFMC History Office, edited by noted aerospace author Tony R. Landis. Recommended.

 Posted by at 8:34 pm
Jun 132019

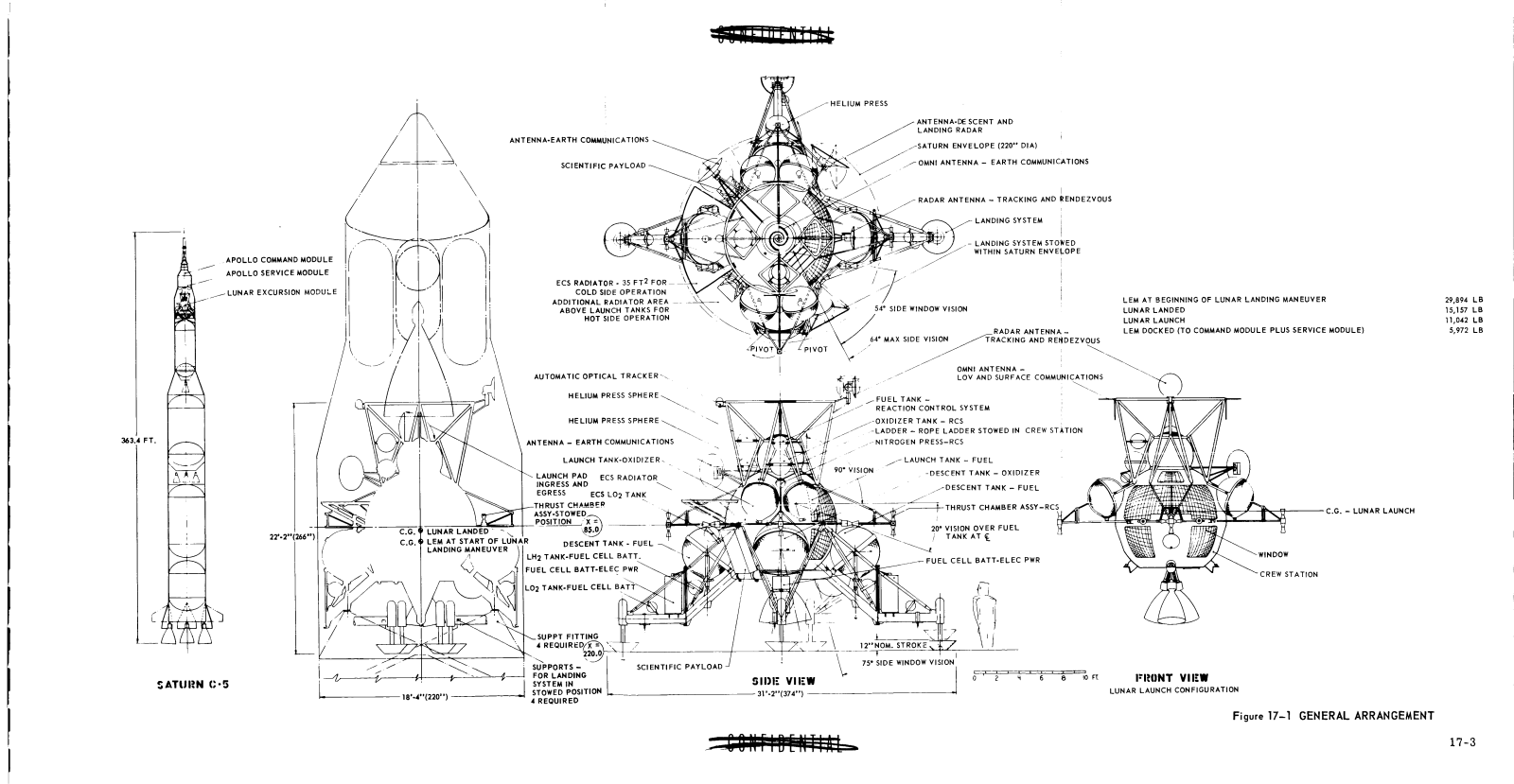

One of the documents lost from the NASA Technical Report Server when NASA gutted it in 2013 was a Chance Vought corporation report on a simulator for their lunar lander. The “Apollo Rendezvous Simulator Study” from July 1962 focuses of course on a ground-based simulator, not on a detailed design of their lunar lander… but fortunately the documents do show art and diagrams of the lander. It is an odd looking little bug, with giant windows and a configuration similar to the Soviet LK in that there were no distinct descent and ascent stages, but a single manned vehicle that would leave the landing legs and some tanks behind when it lifted off.

Fortunately, even though it was scraped from the NTRS it can still be found on the Internet Archice/Wayback Machine. Huzzah!

Support the APR Patreon to help bring more of this sort of thing to light! Alternatively, you can support through the APR Monthly Historical Documents Program.

 Posted by at 12:31 am
Jan 282019


The Internet Archive has a *lot* of stuff. One thing there is a scan of the French-language aeronautical magazine “L’Aeronautique” covering 1919-1921. It is available in a number of formats, including PDF, here:

https://archive.org/details/la02b9eronautiqu03pari/page/n2

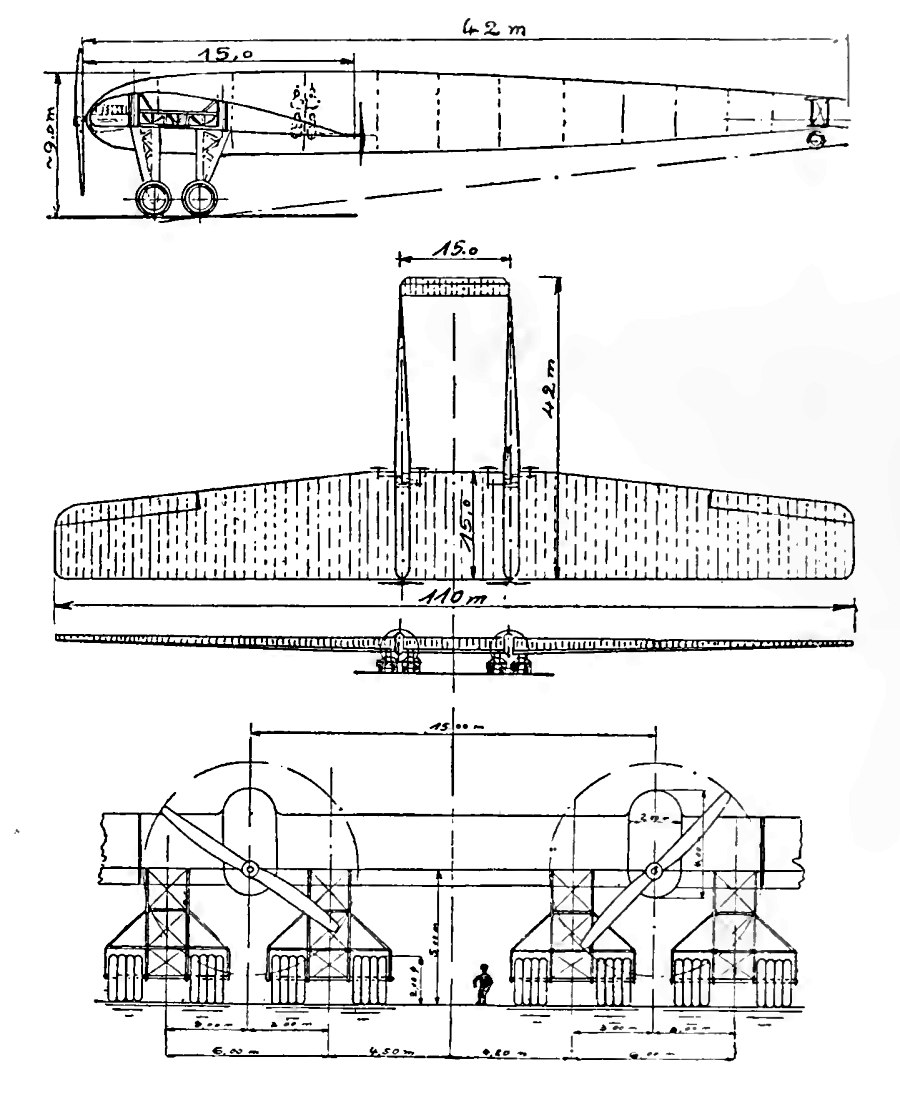

Included in this is a design for a truly gigantic aircraft with a  wingspan of 110 meters, produced by Professor Junkers, presumably Hugo Junkers of Junkers Flugzeug- und Motorenwerke AG.Hugo was an innovator in the field of all-metal aircraft construction, including the first practical all-metal aircraft the Junkers J 1 from 1915. The giant aircraft would have a wing area of 1,400 square meters and a gross weight of 60 tonnes; 12 engines would produce 4,000 horsepower and drive six propellers. Two tractor props would have a diameter of 6 meters, while four pusher props would have a diameter of 3.7 meters.  No performance data seems to be given, but it can be assumed that it was meant to be a long range passenger or cargo transport.



Support the APR Patreon to help bring more of this sort of thing to light! Alternatively, you can support through the APR Monthly Historical Documents Program.

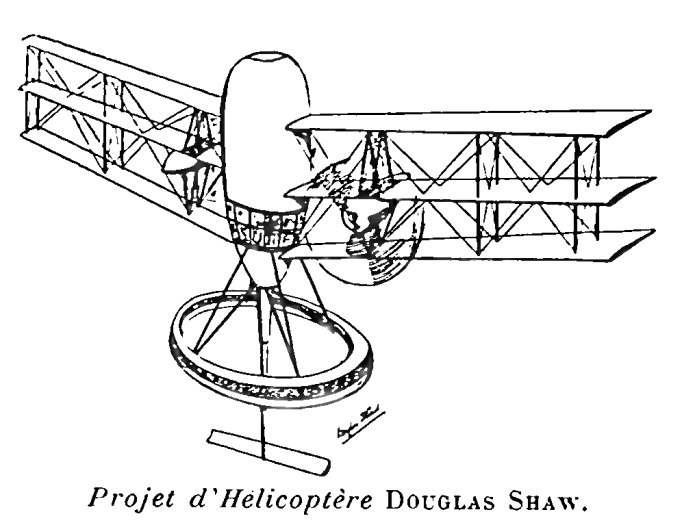

Bonus: A helicopter design from one Douglas Shaw. This would have failed entertainingly.

 Posted by at 7:40 pm
Dec 042018


In the late 1960’s H.H. Koelle of the Technische University Institut Fuer Raumfahrttechnik in Berlin devoted considerable effort to studying a reusable heavy lift launch vehicle. A good, well-illustrated report was put out in 1968 covering the design:

Entwurfskriterien fur groBe wiederverwendbare Tragersysteme (Design Criteria for Large Reusable Space Transportation Systems)

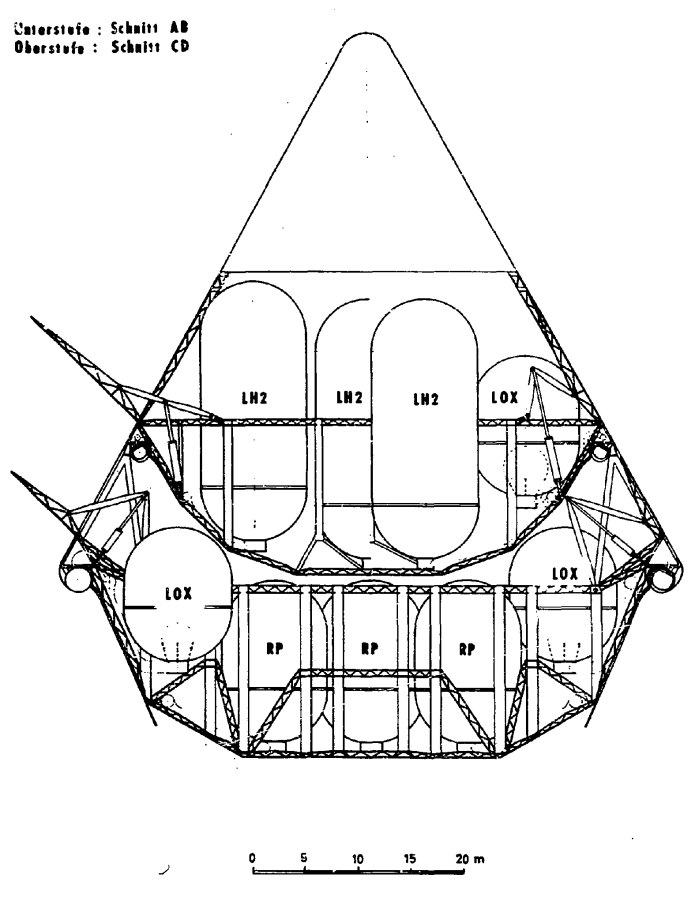

Note that the Neptun was *gigantic.* It was a two-stage ballistically recovered design, unusual in that rather than being circular in cross-section it was hexagonal. The individual propellant tanks were each the size of or bigger than the S-IC first stage of the Saturn V.

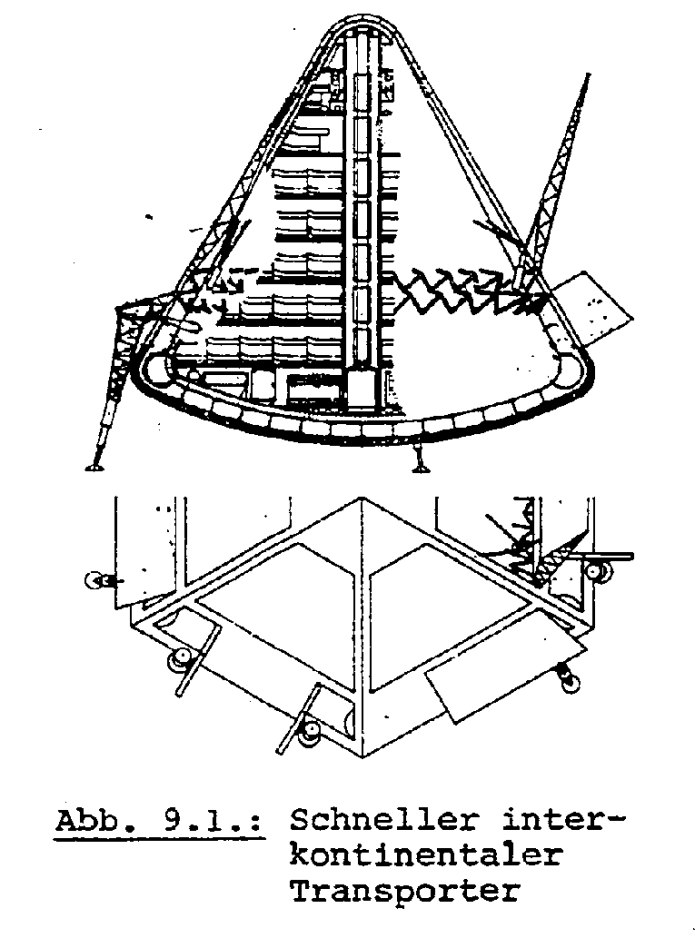

A number of payloads were proposed. One was a sub-orbital intercontinental passenger transport, The passenger “capsule” would land separate from the Neptun itself.

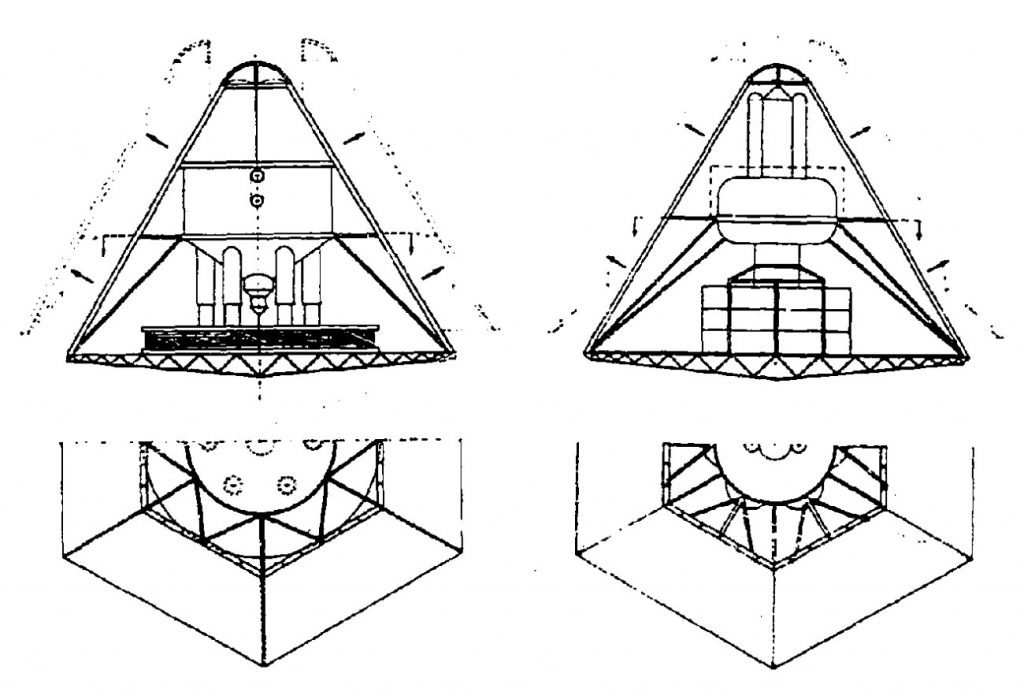

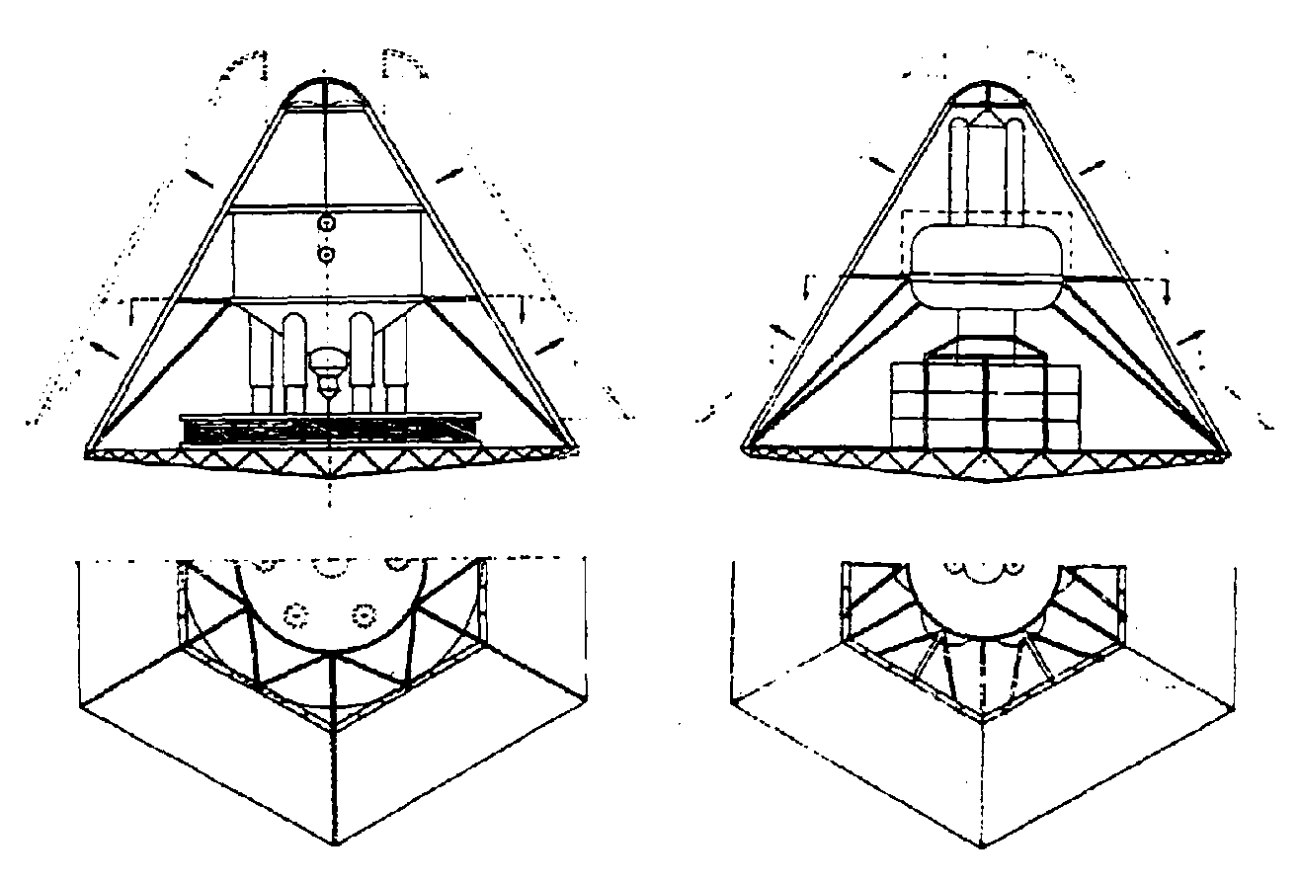

One of the more interesting payloads contemplated was a large Orion nuclear pulse vehicle, transported in two pieces (propulsion module in one launch and payload/pulse units in the other). Presumably this would be a NASA Orion hitching a ride on a West German booster; I suspect politics would have negated the likelihood of the West Germans developing a mass production line for nuclear explosives.

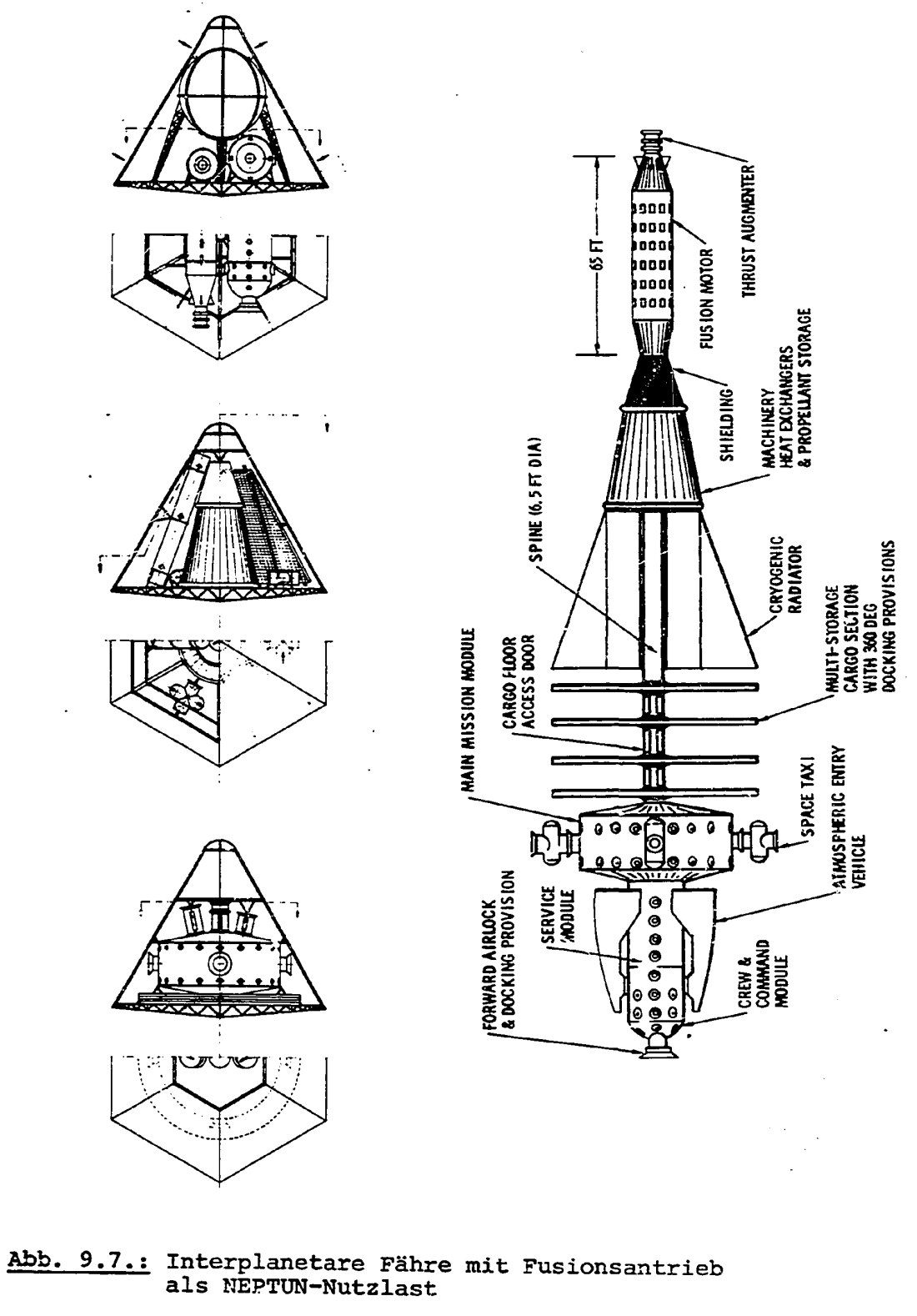

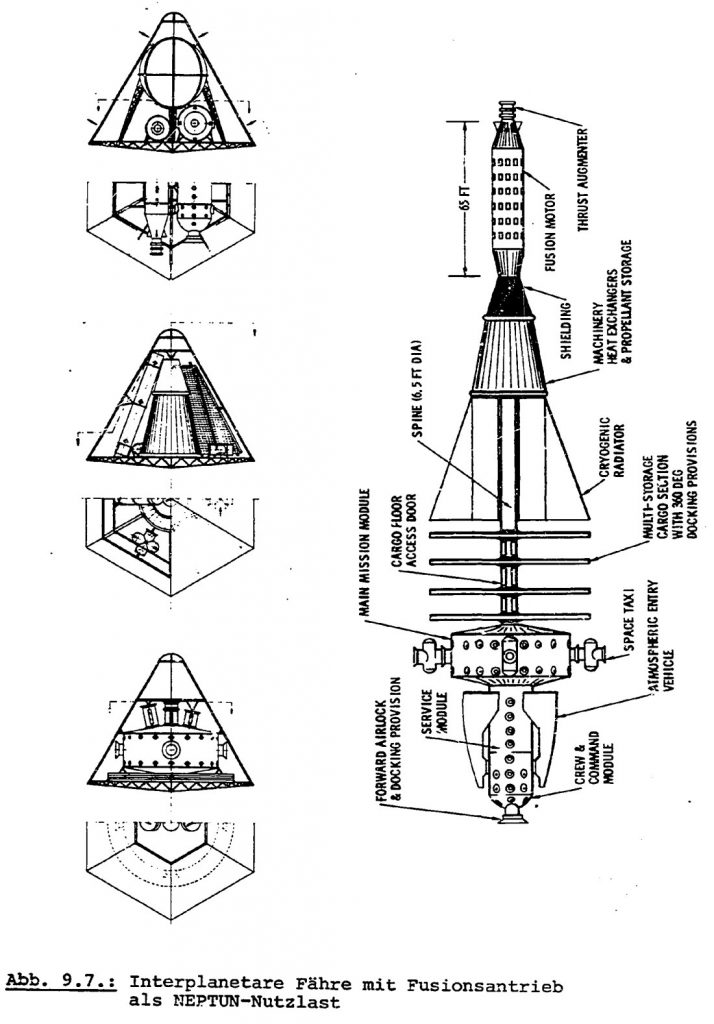

This fusion-powered interplanetary spacecraft is also a NASA design, dating from the early 1960’s.

Support the APR Patreon to help bring more of this sort of thing to light!



patreon-200

 Posted by at 7:27 pm
Aug 042018


…for extracting water from rocks on the moon. This dates from 1963-65 and was part of a North American Aviation study relate to post-Apollo lunar exploration… which at the time was fully expected. The LESA (Lunar exploration Systems for Apollo) program would land habitats on the moon for extended exploration; the later phases of the LESA program were expected to occur in the late 1970.s The conclusion was that solar was preferred for the earliest phases, transitioning to nuclear. Basically, either system would cook rocks till the water came out as a thin vapor, which would be collected.

In the more than fifty years since this came out, the technologies involved haven’t changed a whole lot, especially solar: it remains a mirror and sunlight. Nukes should – hopefully – have improved. So it might still be a bit of a tossup on the moon; of course, any long-term lunar exploration is going to need nukes anyway for the simple reason that two weeks of night is a *real* long time if your base is solar powered. Going further out – asteroids, outer planet moons, comets and such – the math increasingly works in nuclears favor. But then, what’s needed is power, and mirrors in microgravity can be made extremely large.

It’s an interesting report. If not for the technology and techniques described, then for the basic worldview that suggested to engineers more than half a century ago that they’d soon have to crack water out of lunar rocks.

A Study of the Feasibility of Using Nuclear Versus Solar Power in Water Extraction from Rocks.

Direct PDF download link.

Help support the APR Patreon.

patreon-200

 Posted by at 3:14 pm
