New Vector-PDF Diagrams

bomber, CAD Diagrams, fighter, hi-rez, hypersonic, launch vehicles, rockets, space shuttle, spaceplane, stealth, US Bomber Projects, US Fighter Projects, US Launcher Projects, US Transport Projects No Responses »

May 302016

I’ve recently figured out how to get reliably good-quality vector graphic PDF files from my AutoCAD diagrams.These differ from standard “raster” graphics like GIFs and JPGs in that they are composed of scalable lines rather than pixels; this means that they can be printed off at many scales and they’ll retain clarity.

I think a lot of the diagrams would look quite good printed in large format; I’ve previously mentioned that I’m working on a few diagrams specifically for printing off on large format (24X36) mylar, but I’ve others that I think would also look good scaled for 18X24. I’m making these first seven diagrams available, formatted and scaled for 18X24. They can be viewed on screen, printed on a standard printer or printed by a large format printer all with equal clarity.

If this idea appeals, be sure to tell your friends, family, foes, anyone you think might be interested. Also be sure to comment if there are any diagrams I’ve previously created for APR, USXP or elsewhere that you’d like to see in this format. Some of them would be best as multi-sheet diagrams. Suggestions on how to improve also appreciated.

CAD 007: Northrop Low Altitude Penetrator

A 1/72 diagram of a 1979 design for a B-2 alternate configuration

Download for $3

———————————

CAD 006

A 1/96 scale diagram of the 1979 Rockwell D645-4a spanloader bomber.

Download for $3

CAD 005

A 1/144 scale diagram of the Manned Spacecraft Center MSC Orbiter 020, a 1972 Space Shuttle concept with a single 260″ solid rocket booster.

Download for $3

CAD 004

A 1/350 scale diagram of the 1971 Boeing Resource Air Carrier (AKA RC-1, AKA “Brute Lifter”) designed as a flying oil tanker for the arctic.

Download for $3

CAD 003

A 1/72 scale diagram of the Martin-Marietta “Zenith Star” experimental space-based laser for the Strategic Defense Initiative.

Download for $3

CAD 002

A 1/24 diagram of the Lockheed “Harvey,” the initial concept for a low radar cross section strike platform that eventually became the F-117.

Download for $3

———————————

CAD 001

A 1/32 diagram of the North American Rockwell D-541-4 “Surprise Fighter” from 1973, an early stealth concept designed to sneak up on Soviet AWACS planes.

Download for $3

Download all seven for $18.90 (10% off)

OSC Next Generation launcher

launch vehicles, rockets No Responses »

May 252016

SpaceX’s successes with the Falcon 9 is forcing the rest of the launch industry to come up with new ideas. Orbital Sciences has released a bit of info on the Next Generation Launcher, which is based on a Space Shuttle booster first stage with a new Blue Origin third stage (which *might* indicate that the third stage is to be recoverable). And like Falcon 9, the NGL is designed with a heavy version… which has not only a pair of solid strap-on boosters, but a different first stage solid rocket.

Can’t say as that really make a whole lot of sense to me. But I guess we’ll see. First, we’ll see if OSC is truly serious about this, and they actually forge ahead.

Orbital ATK's John Steinmeyer: Proposed next-gen launcher is three stages, crowned with Blue Origin BE-3 third stage pic.twitter.com/JtQvIrJ5tL

— Stephen Clark (@StephenClark1) May 24, 2016

With luck a clearer version of this chart will be made public.

Hammerhead ET

launch vehicles, rockets, space shuttle, spacecraft, US Launcher Projects No Responses »

May 162016

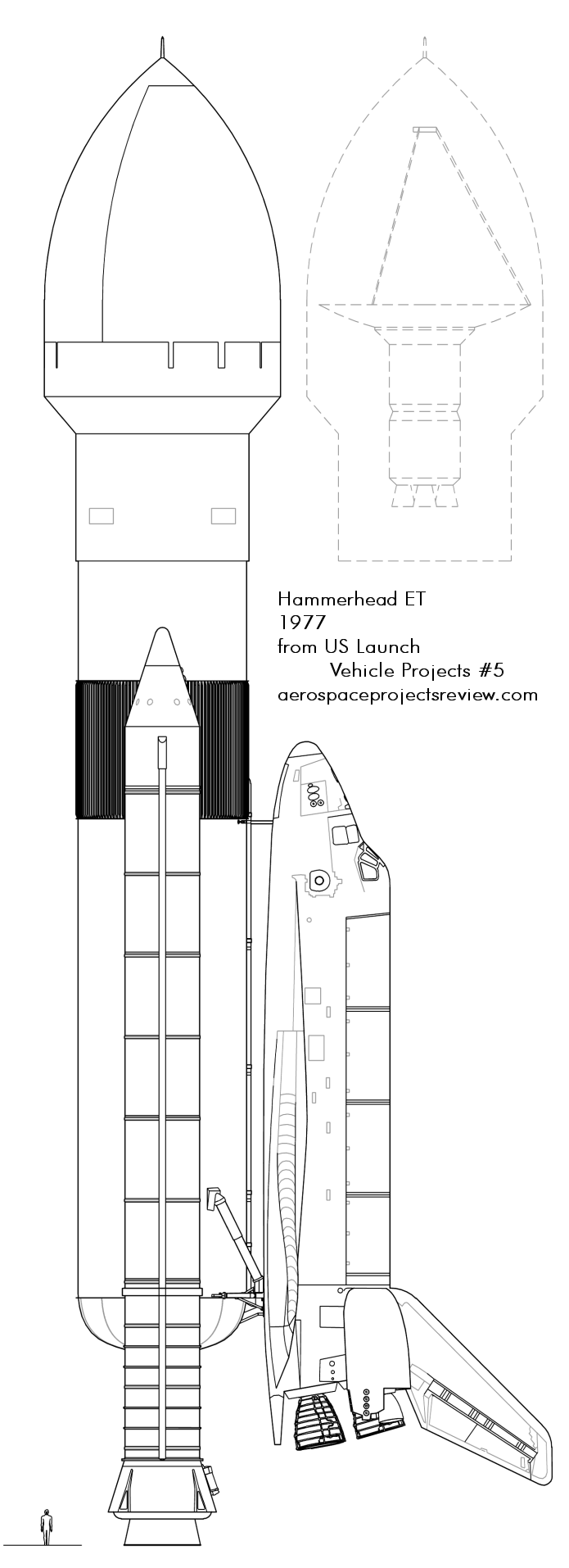

A 1977 Rockwell concept for how to expand the utility of the Shuttle system: move the payload from the Orbiter and put it in a shroud ahead of the External Tank. This would have allowed for much larger-diameter payloads to be carried. The ET would of course have had to go into orbit with the Orbiter itself. More info and diagrams of this are in US Launch Vehicle Projects issue 1.

Wheels vs Tracks vs Archimedian Screws

spacecraft No Responses »

May 162016

From back when General Motors was studying spacecraft, here’s an early 1960’s video showing tests of three means of surface propulsion for lunar vehicles:

The Archimedes Screw system was interesting, but it seems to me that there’s virtually no chance that it would be a good idea on the moon. The rough, razor-sharp regolith would seem likely to sandblast those shiny metal screws in little short of no time.

Lockheed XFV-1 film

fighter, VTOL No Responses »

May 142016

A 1952 film describing the turboprop tailsitter. The film apparently had no audio, so a wholly unnecessary bit of “film projector noise” was added.

The film shows some interesting stuff, such as animations of the craft in action, and artists impressions of what must have been early alternate designs including a ducted-fan design and one with an odd delta wing with a cutout for the props.

Boeing Model 800-15A

US Bomber Projects No Responses »

May 082016

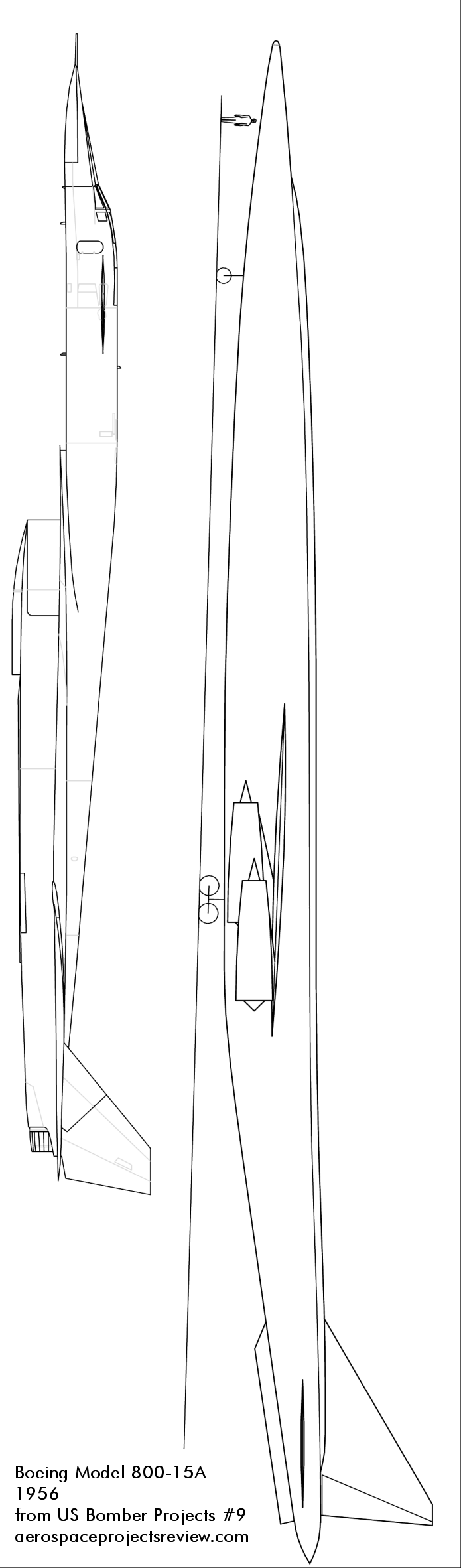

Side-view diagram of a Boeing concept for a hydrogen-fueled supersonic bomber from 1956. This monster is shown to scale with a North American XB-70. More info and diagrams of this are in US Bomber Projects issue 9.

Advanced Solid Rocket Motor Concept, 1963

rockets, spacecraft 2 Responses »

May 072016

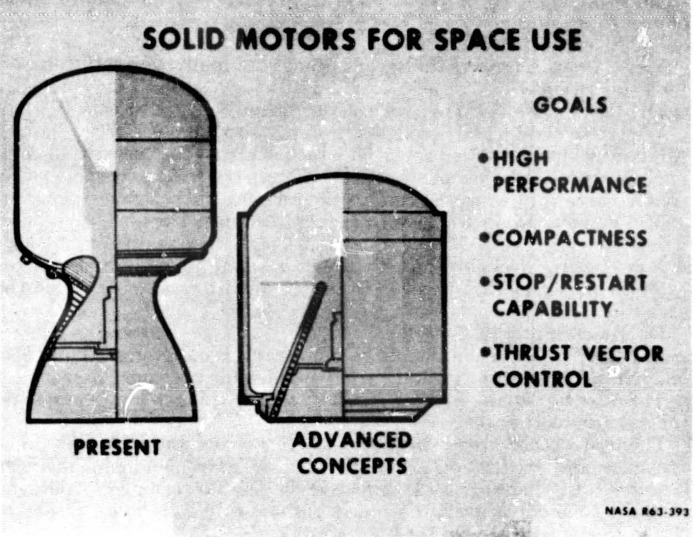

A NASA illustration of an advanced solid rocket motor concept, dated 1963. The most obvious difference between the “present” and “advanced” design was the buried nozzle. By properly shaping the solid propellant grain, the motor would perform normally but with a minimum of unused internal volume; this allowed the motor to be substantially shorter than the conventional design. This would make the associated interstage section equivalently shorter, lighter and cheaper. And by shortening and lightening the interstage, the launch vehicle would be shorter, lighter and stronger, with slightly sturdier structural dynamics.

The advantages of a more compact motor like this are pretty obvious. The disadvantages, maybe less so. The most apparent disadvantage is the *need* for far more advanced materials. That buried rocket nozzle is shown to be quite thin, thinner than the “present” design, yet it would be subjected to horrifying heating rates on *both* sides. There are few materials that could withstand that and retain any sort of structural strength.

Additionally: the desire is shown for thrust vectoring. Numerous options for that are available for the conventional nozzle… but it would be much harder with a buried nozzle. It might be easiest to simply gimbal the entire motor. Stop/restart capability has been achieved with solid rockets, but neither design show here provides for that. It is a non-trivial feature.

The igniter is show to be a small rocket motor suspended within the nozzle, directing it’s exhaust forward into the bore volume of the main motor. Variations on this sort of igniter are quite common for relatively short and stubby upper stage motors such as these.

NASA hypersonic model

hypersonic, launch vehicles, research, rockets, spacecraft, spaceplane No Responses »

May 012016

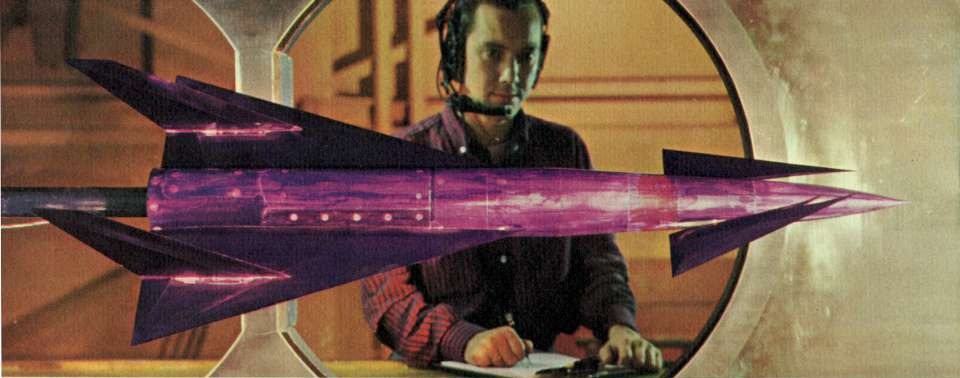

A photo of a NASA wind tunnel model of a hypersonic aircraft configuration. The circa 1960 NASA brochure (promoting the organization to college students) that included this provided no further information, but I’m reasonably sure I’ve seen the wind tunnel test report on this, calling it a reusable booster or reusable launch vehicle. If that’s the case, the upper stages and payload were *probably* going to be carried on the things back.

Graphics Design and USBP

bomber, US Bomber Projects, US Fighter Projects, US Launcher Projects, US Spacecraft Projects, US Transport Projects, US VTOL Projects 2 Responses »

May 012016

I admit that the USBP series looks kinda… bland. It’s text and line drawings; not a whole lot can be done to jazz that up. Especially since I have no head for graphics design whatsoever apart from layout diagrams.

Still, one reader sent me a mockup of a revised cover of USBP #18:

Things are moved around a little bit, but the obvious change is the addition of color. The suggestion was also made to consider color-coding each title in the USXP series. Just off the top of my head, I came up with:

Bombers: Olive Drab

Spacecraft: Black

Launch Vehicles: Blue on bottom, transitioning to black at the top

Fighters: slightly bluish gray (like the F-15 or F-22)

Transports: ??

VTOL: ??

The USBP#18 cover was re-done to reflect this, thusly:

Thoughts? Is this more appealing?How about color-coding… good idea or not? And if so, what colors?

I tried something vaguely like this once before, with USBP#05.
