Rotating space station art

hi-rez, Patreon, space station, spacecraft No Responses »

Aug 282018

An artists concept of a rotating space station circa 1962. It has a NASA ID number but it *may* be North American Aviation, as they designed a space station essentially identical to this, as described and illustrated in an article written by Dennis R. Jenkins for Aerospace Projects Review issue V1N6. This space station was designed to be launched as a single payload atop a two-stage Saturn V; it would unfold once in orbit to form the pseudo-toroidal shape. This piece of art depicts a central docking hub that must have been intended to be rotationally decoupled from the station. The space station must have been non-rotating at the point in time illustrated, or those spacewalking astronauts are going to have an interesting time doing their job.

A high-rez scan of this piece of art has been uploaded to the 2018-08 APR Extras folder on Dropbox for APR Patreon patrons at the $4 level and above. If this sort of thing is of interest, please consider signing up for the APR Patreon.

Solar Power Satellite Art

spacecraft No Responses »

Aug 262018

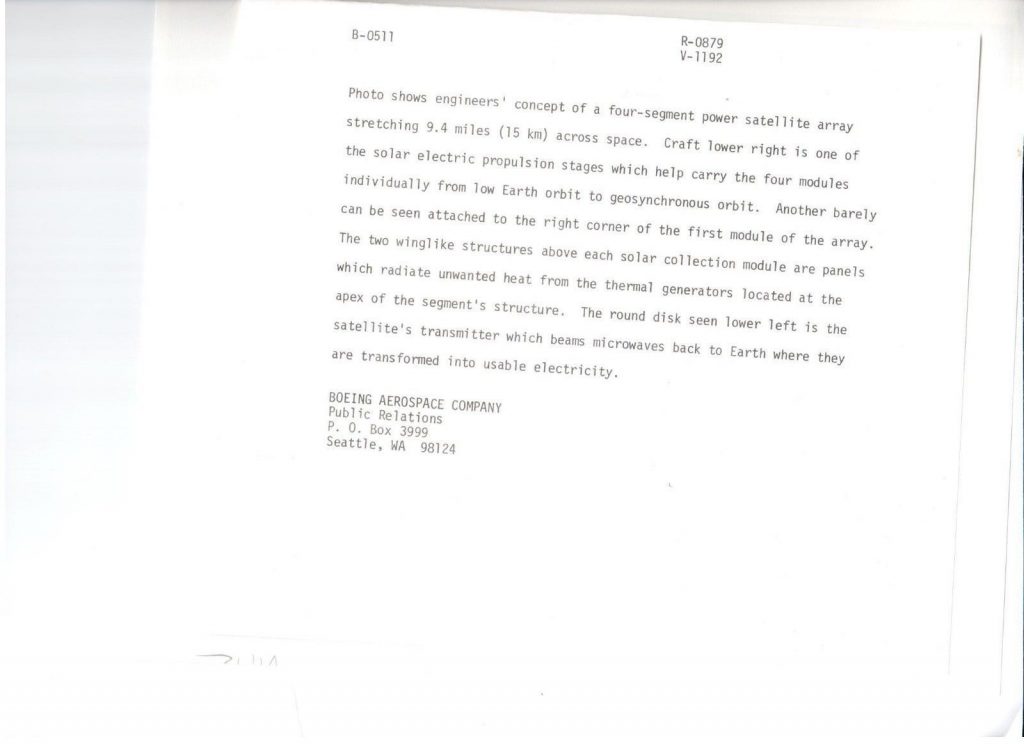

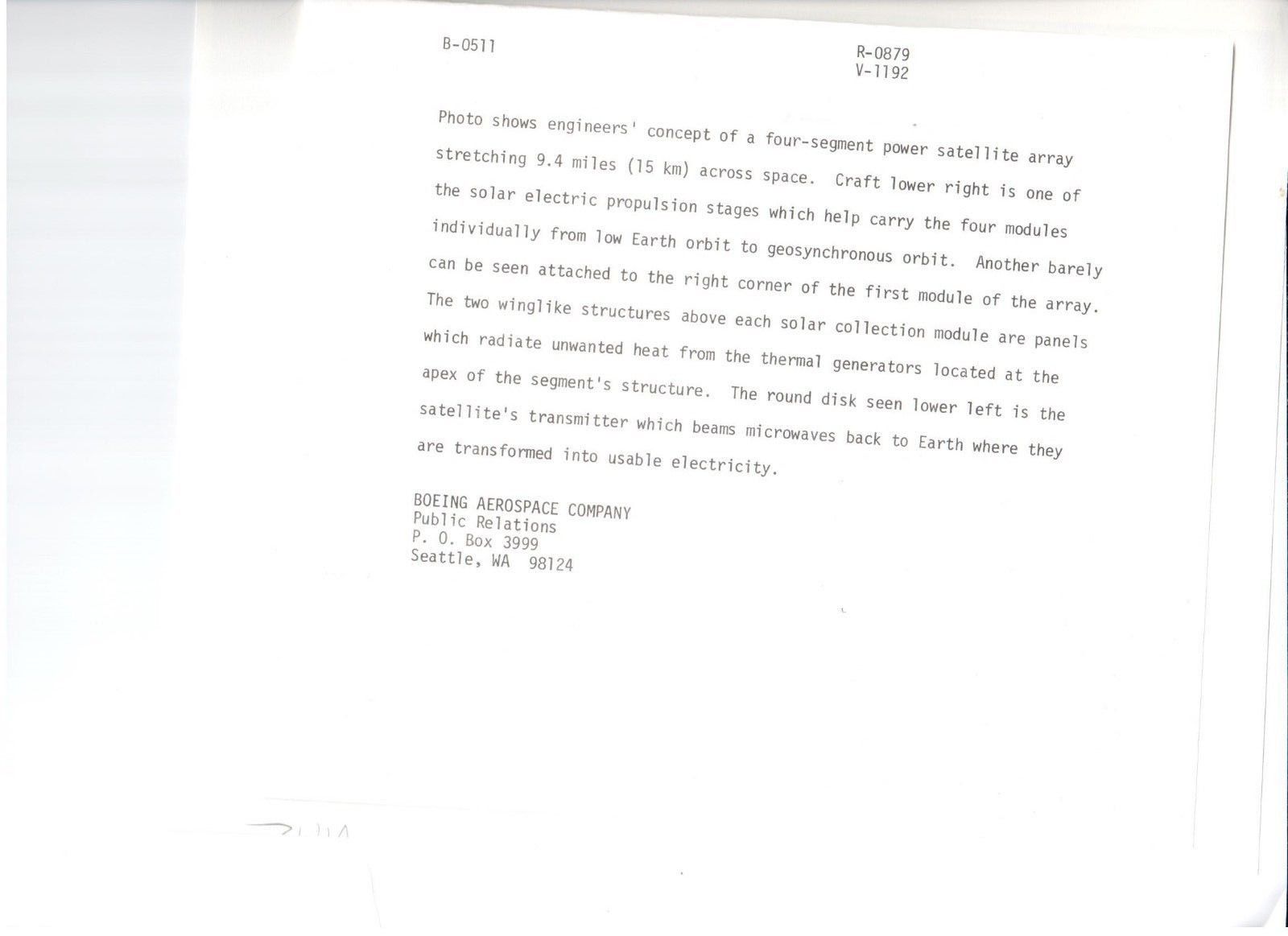

A scan of a black and white PR glossy sold on ebay depicting a Boeing concept for a solar power satellite from the 1970’s. Most SPS concept were for Manhattan-sized slabs of aluminum trusswork, holding vast fields of photovoltaic cells. This design, though, was different in that it was a Manhattan-sized collection of vast reflectors concentrating sunlight onto relatively small targets. There a working fluid would be super-heated and the resulting high pressure gas blown through turbogenerators. The gas would be cooled and condensed in the radiators. Note that the artist took some liberties with the orientation: a setup like this would only work if the reflectors were reasonably precisely aligned with the sun. That would only occur when the shadow of the solar collector at the focal point fell onto the center of the concentrating mirror assembly; the radiators would cast almost no shadow, just a razor-thin line bisecting the mirrors.

Rocketdyne nuclear-electric spacecraft art

nukes, rockets, spacecraft 1 Response »

Aug 242018

A piece of 1960’s (published in a book in 1967, but it looks older than that) artwork depicting a five-man nuclear-electric spacecraft. heading to Mars. The spacecraft is long for radiation shielding purposes; at the far distant forward end is the reactor, with the crew and ion engines in the conical section in the tail. Between the ends is a long boom attached to which are the propellant tanks and two large radiators. This is more or less the propulsion system and layout originally planned for the spaceship “Discovery” from the movie “2001: A Space Odyssey,” with the difference that the ion engines were on the other side of the crew module, and the spacecraft “towed” the reactor and radiators, rather than pushing them.

Raise the Burevestnik

nukes 1 Response »

Aug 222018

As described hereabouts back in March, Vladimir Putin claims to have himself a nuclear powered cruise missile. I remain dubious, but the fact is that the Russians launched *something* and it crashed into the Barents sea. The Russians seem to be looking for it… and chances are fair that the United states Navy is as well.

Back in July the Russians released a video that purported to show bits and pieces of the supposedly nuclear-powered Burevestnik missile:

The video does not show the configuration with any clarity. What can be made out is that it seemed to have a fairly conventional forward fuselage designed for low radar reflectivity, with relatively simple flip-out wings of the type common to cannisterized cruise missiles. Two further points can be gleaned from the video:

1) The missile isn’t that big… seems right in line with something like a Tomahawk.

2) The facility almost seems like a high school gym.

Both of these argue against taking the claim of nuclear propulsion too seriously. Of course, it’s a video produced and released by the Russians, so it’s impossible to say whether it is remotely accurate; it could be pure deception. But assuming it truly depicts the weapon system, it seems *real* *small* for nuclear propulsion, and the facility and the workers in it seems to be pretty lackadaisical about working around nuclear systems.

Early Saturn V art

launch vehicles, nukes, rockets, spacecraft No Responses »

Aug 212018

Found on ebay: a piece of B&W art depicting the Saturn V. The provenance is uncertain… unknown where this art originated. There are some unusual details; the tailfins are clocked 45 degrees off, moved from the outer diameter of the engine firings to between them, an odd choice to say the least. The third stage is larger in diameter than the S-IVb with a very long interstage between the S-II and the S-IVb; this *may* indicate that the third stage was meant to be a nuclear stage, with a single NERVA engine attached to the rear of the S-N third stage. The payload is also different: it appears to be a direct lander… no LEM, the Apollo vehicle landed directly on the lunar surface.

HLH art: 3

transports, VTOL No Responses »

Aug 182018

Another ebay find depicting the Boeing Heavy Lift Helicopter, this time carrying a heavy truck of some kind. Perhaps as a bit of a dig at Sikorsky, in the background another HLH is shown carrying a CH-54 Skycrane.

NERVA to Mars art

launch vehicles, nukes, research, rockets, spacecraft No Responses »

Aug 182018

A piece of Aerojet artwork depicting the NERVA nuclear rocket engine heading to Mars. This is almost certainly artistic license as the vehicle depicted here is a single stumpy upper stage with an aerodynamic fairing. This is mot likely a RIFT (Reactor In Flight Test) configuration, a simple expendable upper stage test configuration meant to be launched atop a Saturn V to prove out the engine.

Boeing HLH art: 2

transports, VTOL No Responses »

Aug 162018

Another ebay find, this one depicts the HLH transporting cargo from a ship to shore. It appears to be constructing storage tanks, presumably for oil or water, from prefabricated sections.

XP-55 Ascender Cutaway

fighter, hi-rez, Patreon No Responses »

Aug 142018

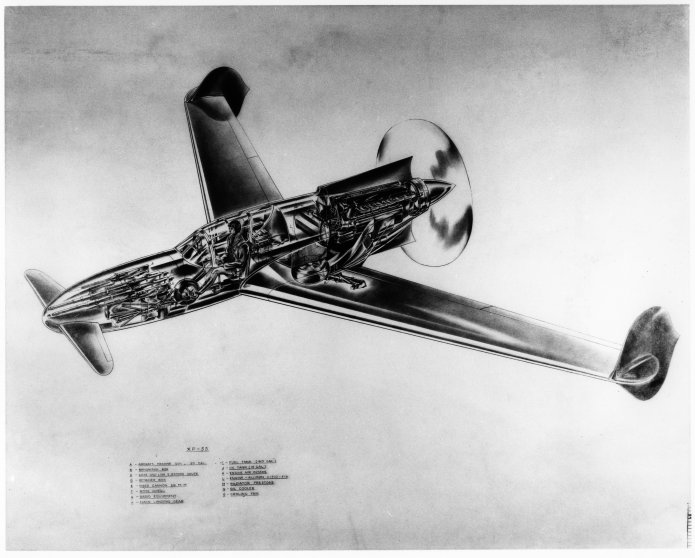

The Curtiss-Wright XP-55 Ascender was a tailless fighter design from WWII. It was intended to be an improvement on then-current designs in terms of performance, but proved to be disappointing. After years of development and flight testing, it was overtaken by jet propulsion and failed to make it into production.

I have made the much-larger full-rez scan of the cutaway available to $10+ APR Patreon patrons. If this sort of thing is of interest, please consider signing up for the APR Patreon.

Mercury on a Jupiter

hypersonic, launch vehicles, research, rockets, spacecraft No Responses »

Aug 132018

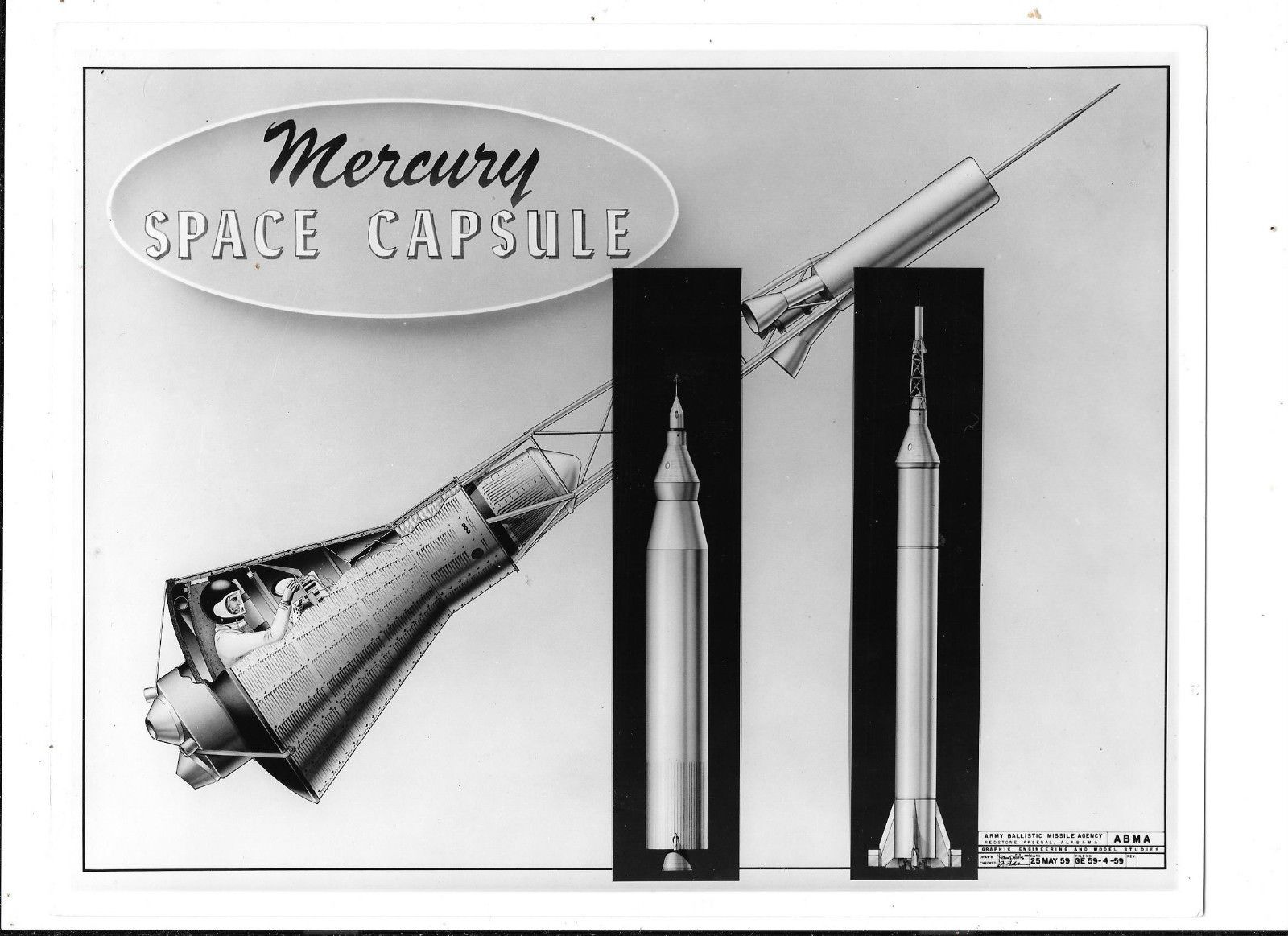

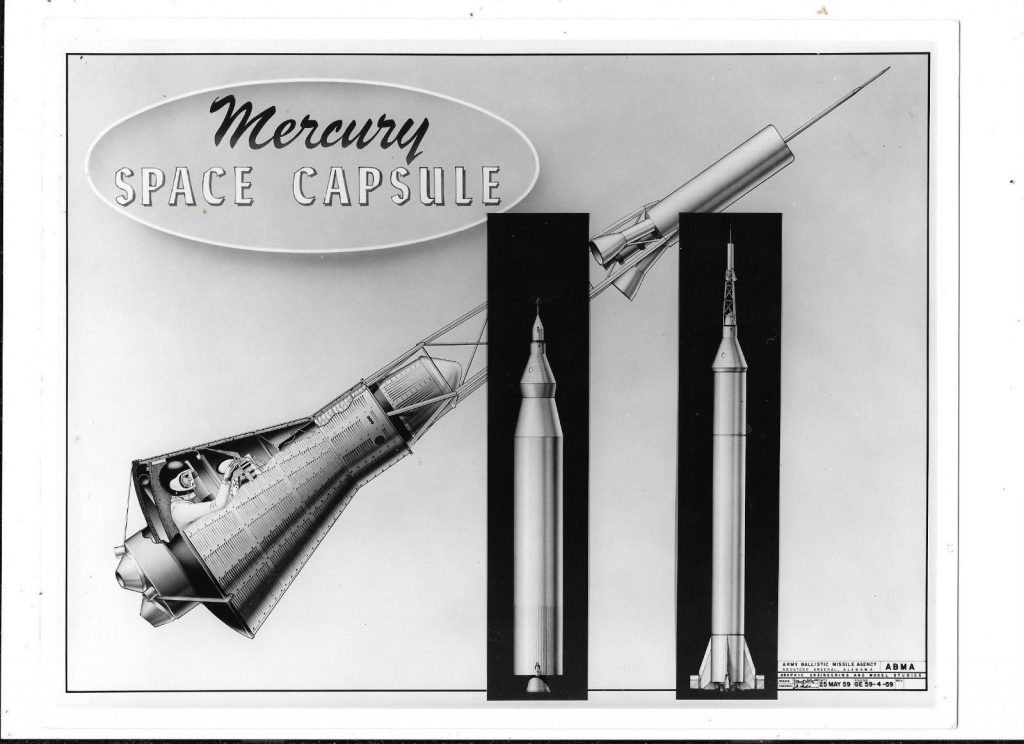

Found on ebay a while back, a pre-NASA Army Ballistic Missile Agency illustration dated 25 May 1959 depicting the Mercury space capsule, including smaller views of it atop both a Redstone and a Jupiter. In both cases this would be a purely sub-orbital lob. It’s unclear just what’s going on with the nose of the Jupiter version; it does not have the abort tower the Redstone version has. This may be a purely aerodynamic fairing, with abort motors located underneath the capsule in the sizable adapter section.
