Orbital Launch Facility

Designed in April of 1962, this NASA-Marshall Future Projects Branch design for a space station was to serve as both a scientific research facility and as an orbital launch facility (OLF). The research station concept is straightforward enough, but the OLF is more interesting.

At the time,  it was just accepted that by the end of the decade Apollo would have proven successful… and was to have been merely the first step in the conquest of space. Lunar bases and missions to Mars would have followed soon on the heels of the Apollo program. To support these expected missions, the OLF would have served as a construction facility in space. Unlike many later orbital construction facilities, this OLF would have a telescoping hangar, providing a long cylindrical shield to protect the spacecraft and those working on it from excessive sunlight and micrometeoroids. Additionally it would provide a controlled lighting environment.

The facility would be launched in two components, each on a Saturn C-5 and both initially unmanned. The scientific research base would have a 30 kilowatt nuclear powerplant, and would be made from a Saturn S-IC liquid oxygen tank. The OLF would similarly use an S-IC LOX tank as a basis, and would dock to the scientific base once on orbit.

A 10-man crew would be needed for orbital launch operations, and a further 15 for the scientific base.

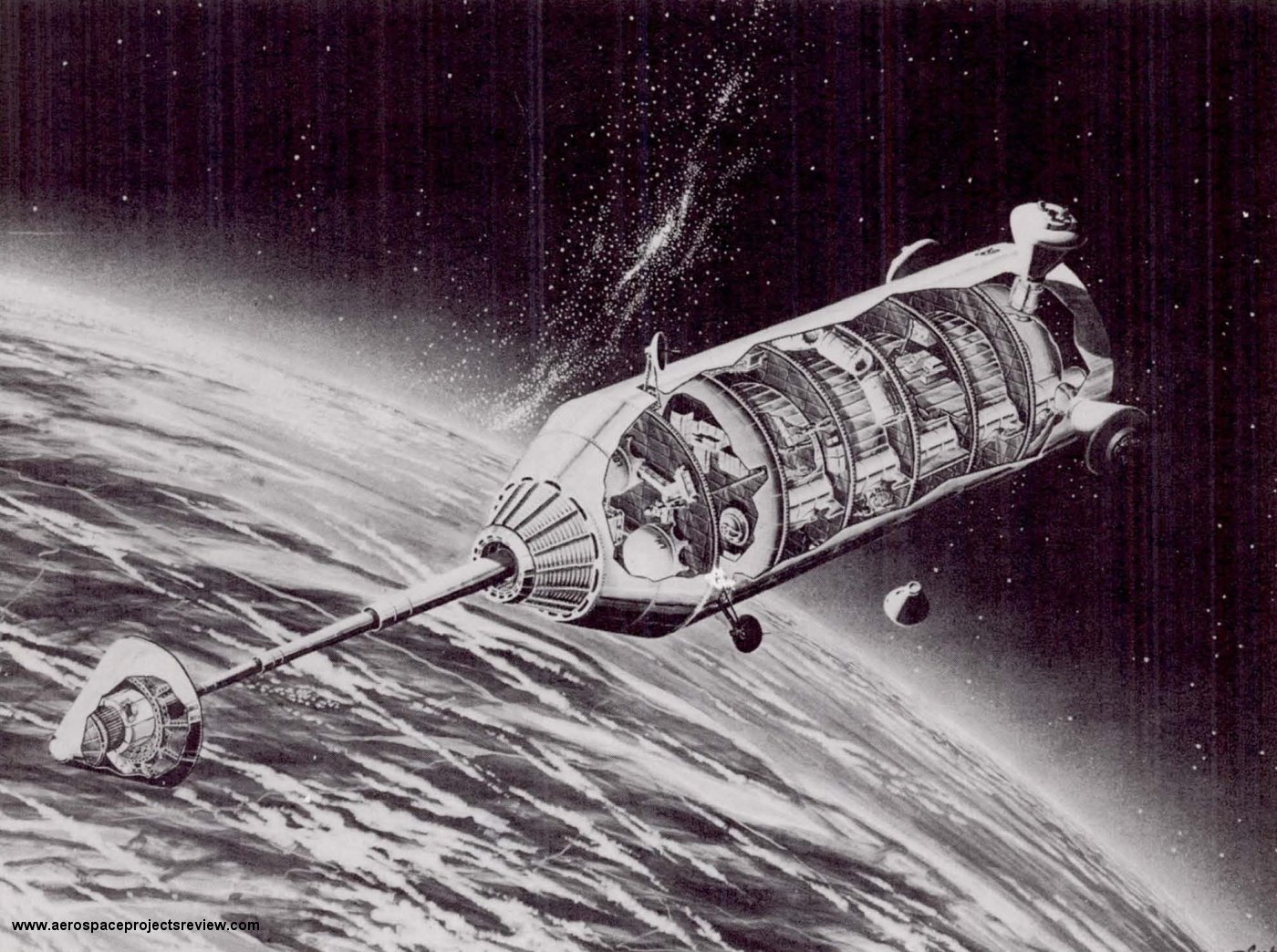

Scientific lab with reactor extended.

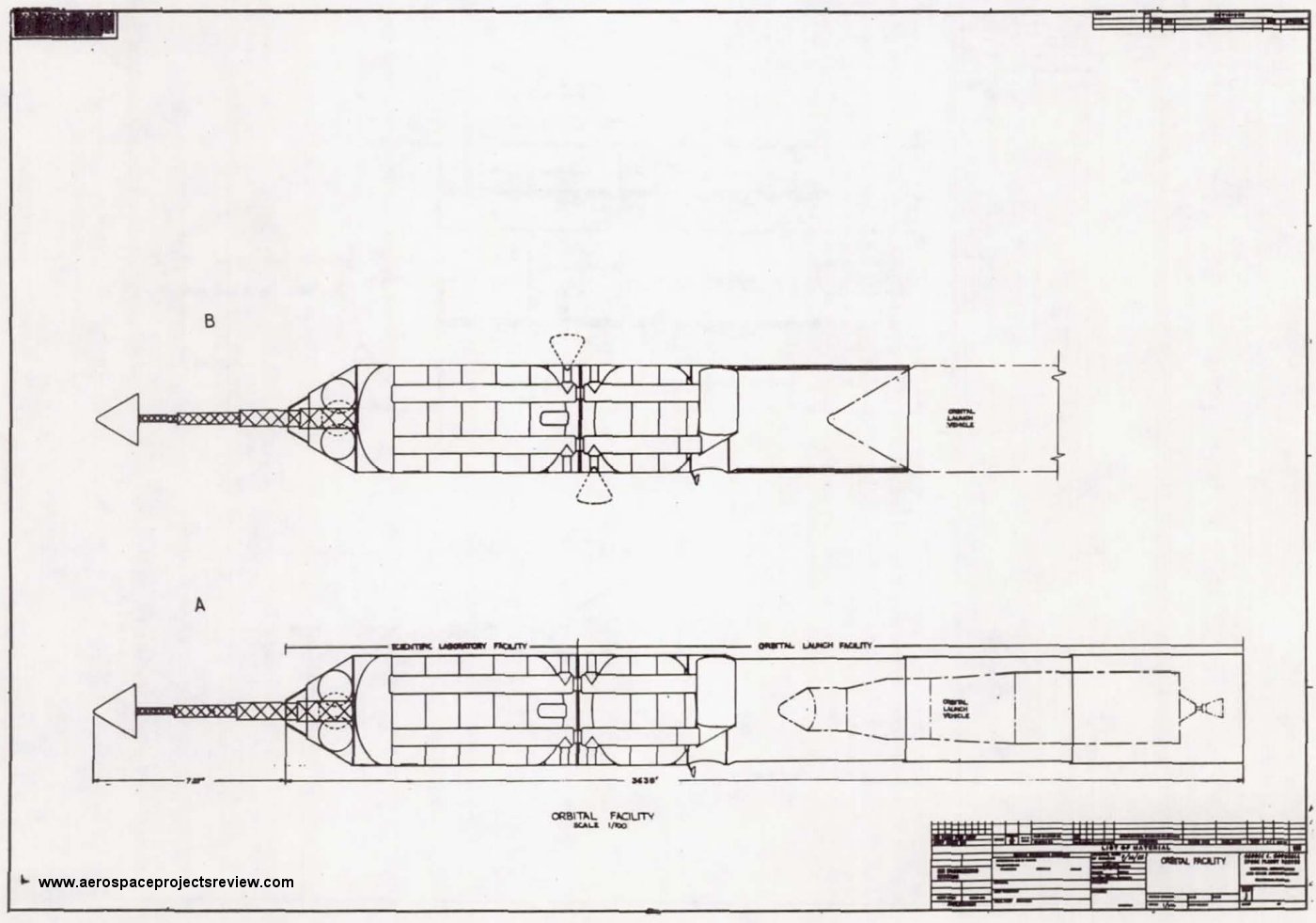

Diagram of assembled orbital launch facility

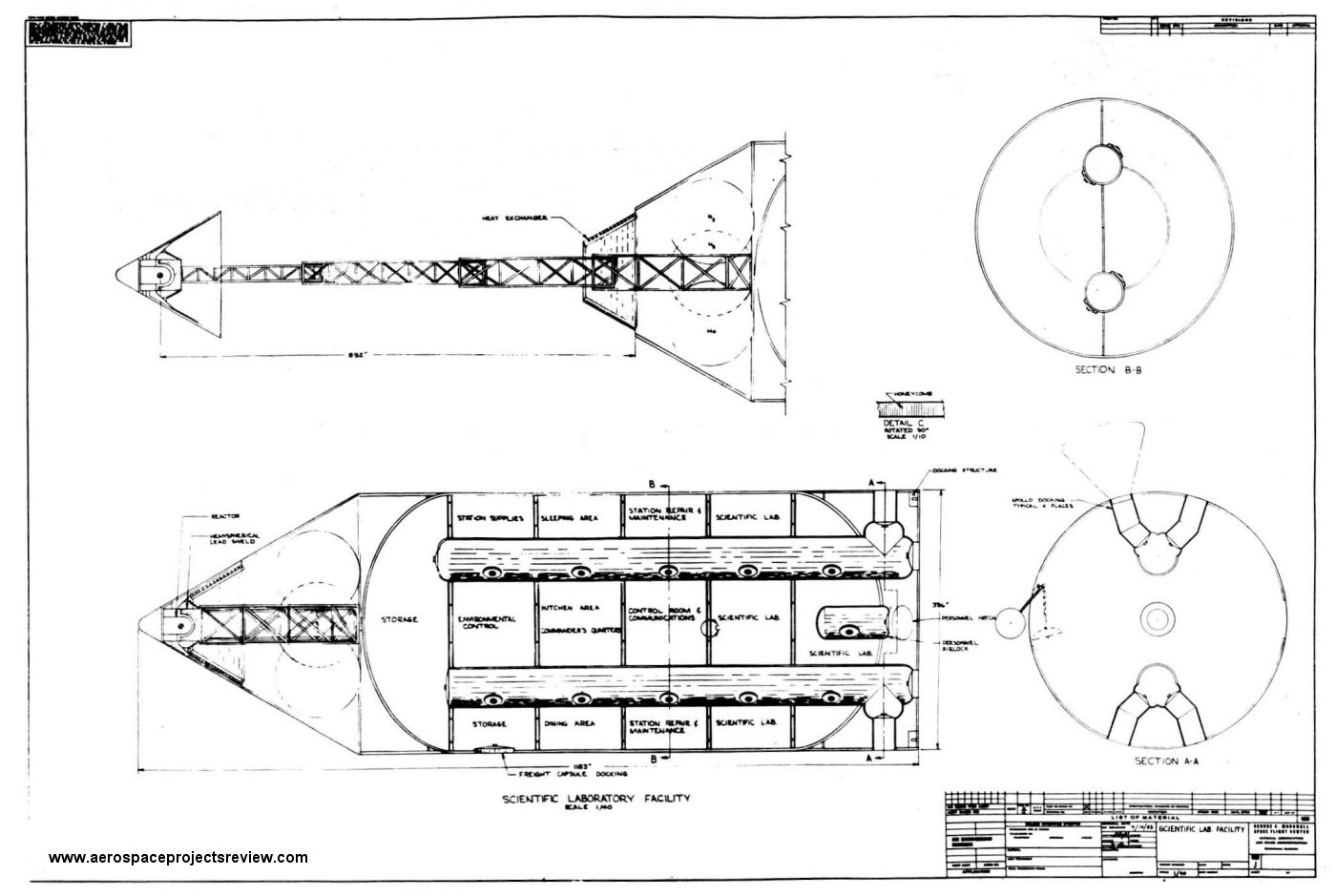

Scientific lab

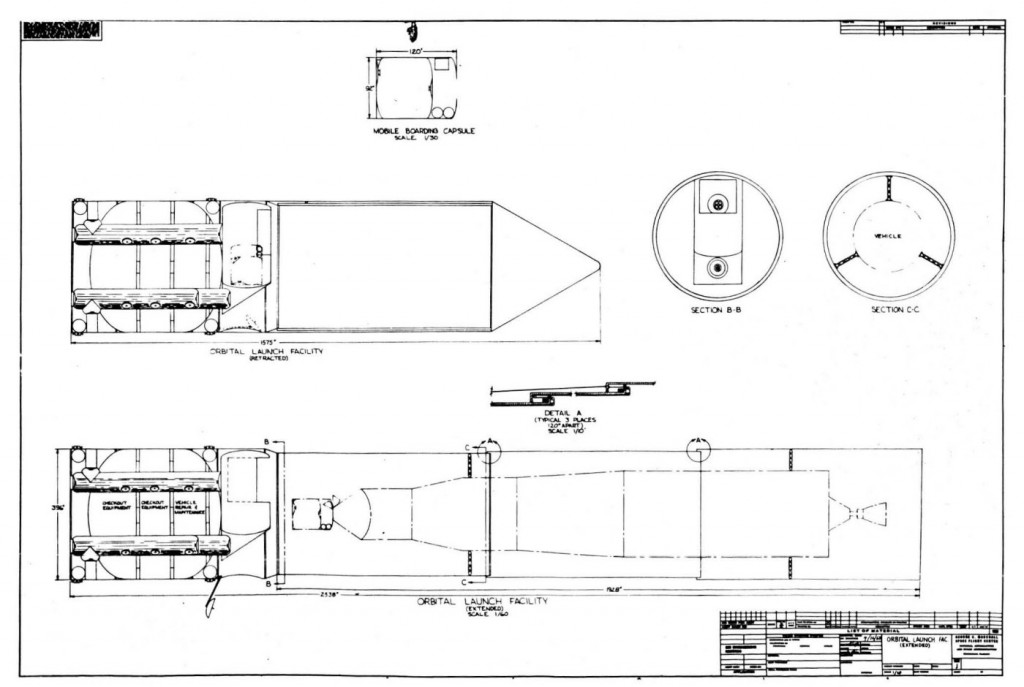

Orbital Launch Facility
